[maker-devel] gene models overlapping with TEs

[Dario Copetti]

Carson,

Analyzing the output of a MAKER run on a rice-sized genome I noticed
that some gene models (~10%) overlap with TE coding regions. As a QC
step, I used BEDtools to determine the intersection of "CDS" and
"repeatmasker" or "repeatrunner" and some 2400 genes overlap for at
least 30% of their respective length. I am wondering how the gene models
still appear in the final output, since I thought that the masking step
was giving us the absoulte confirmation that in our endogenous gene list
we do not include TE coding regions. Here below an example of a gene

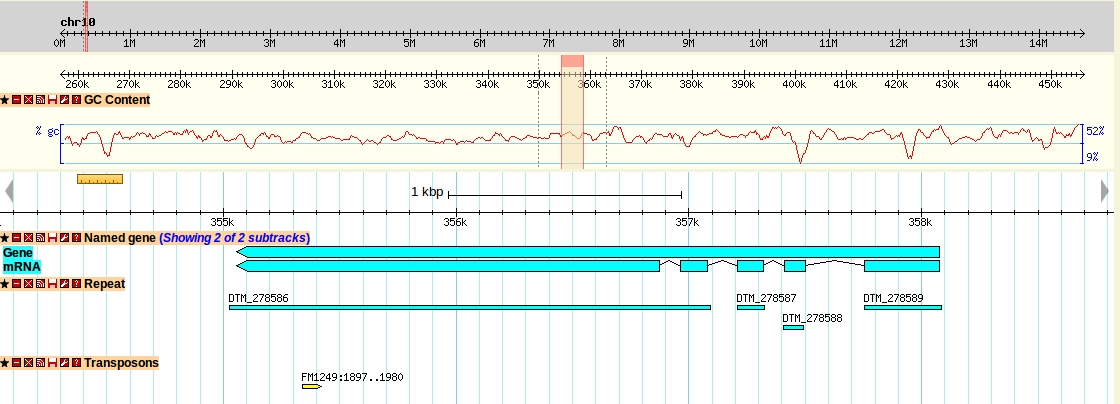

(attached picture too):

ObracChr10 	maker 	mRNA 	355,056 	358,075 	. 	- 	.
ID=Obrac10g00240.1;Parent=Obrac10g00240;Name=Obrac10g00240.1;_AED=0.24;_eAED=0.24;_QI=0|0.66|0.5|1|1|1|4|0|788

ObracChr10 	maker 	exon 	355,056 	356,874 	. 	- 	.
ID=Obrac10g00240.1:exon:4;Parent=Obrac10g00240.1
ObracChr10 	maker 	exon 	356,965 	357,081 	. 	- 	.
ID=Obrac10g00240.1:exon:3;Parent=Obrac10g00240.1
ObracChr10 	maker 	exon 	357,209 	357,319 	. 	- 	.
ID=Obrac10g00240.1:exon:2;Parent=Obrac10g00240.1
ObracChr10 	maker 	exon 	357,756 	358,075 	. 	- 	.
ID=Obrac10g00240.1:exon:1;Parent=Obrac10g00240.1
ObracChr10 	maker 	CDS 	357,756 	358,075 	. 	- 	2
ID=Obrac10g00240.1:cds;Parent=Obrac10g00240.1
ObracChr10 	maker 	CDS 	357,209 	357,319 	. 	- 	2
ID=Obrac10g00240.1:cds;Parent=Obrac10g00240.1
ObracChr10 	maker 	CDS 	356,965 	357,081 	. 	- 	2
ID=Obrac10g00240.1:cds;Parent=Obrac10g00240.1
ObracChr10 	maker 	CDS 	355,056 	356,874 	. 	- 	0
ID=Obrac10g00240.1:cds;Parent=Obrac10g00240.1


















ObracChr10 	repeatrunner 	match_part 	357,755 	358,084 	566 	- 	.
ID=ObracChr10:hsp:75:1.3.0.3;Parent=ObracChr10:hit:75:1.3.0.3;Target=DTM_gi_125573769_gb_EAZ15053.1hypothetical
117 226 +320
ObracChr10 	repeatrunner 	protein_match 	357,755 	358,084 	566 	- 	.
ID=ObracChr10:hit:75:1.3.0.3;Name=DTM_gi_125573769_gb_EAZ15053.1hypothetical;Target=DTM_gi_125573769_gb_EAZ15053.1hypothetical
117 226 +320
ObracChr10 	repeatrunner 	match_part 	357,202 	357,294 	142 	- 	.
ID=ObracChr10:hsp:74:1.3.0.3;Parent=ObracChr10:hit:74:1.3.0.3;Target=DTM_gi_125573769_gb_EAZ15053.1hypothetical
264 294 +86
ObracChr10 	repeatrunner 	protein_match 	357,202 	357,294 	142 	- 	.
ID=ObracChr10:hit:74:1.3.0.3;Name=DTM_gi_125573769_gb_EAZ15053.1hypothetical;Target=DTM_gi_125573769_gb_EAZ15053.1hypothetical
264 294 +86
ObracChr10 	repeatrunner 	match_part 	355,059 	357,092 	3367 	- 	.
ID=ObracChr10:hsp:73:1.3.0.3;Parent=ObracChr10:hit:73:1.3.0.3;Target=DTM_gi_125573769_gb_EAZ15053.1hypothetical
289 937 +1816
ObracChr10 	repeatrunner 	protein_match 	355,059 	357,092 	3367 	- 	.
ID=ObracChr10:hit:73:1.3.0.3;Name=DTM_gi_125573769_gb_EAZ15053.1hypothetical;Target=DTM_gi_125573769_gb_EAZ15053.1hypothetical
289 937 +1816



This result is valid both for output lines from repeatmasker or
repeatrunner, and the gene models come from either FGENESH or SNAP
predictions.
How can I explain this problem?
Thanks,

Dario




--
Dario Copetti, PhD
Research Associate
Arizona Genomics Institute
University of Arizona - BIO5

1657 E. Helen St.
Tucson, AZ  85721
www.genome.arizona.edu
